Automated Guided Vehicle (AGV)

OVERVIEW

Our company has developed the next-generation unmanned carrier which is able to drive freely by installing simple course easily in facility and factory without installing magnetic tape and guideline on the floor.

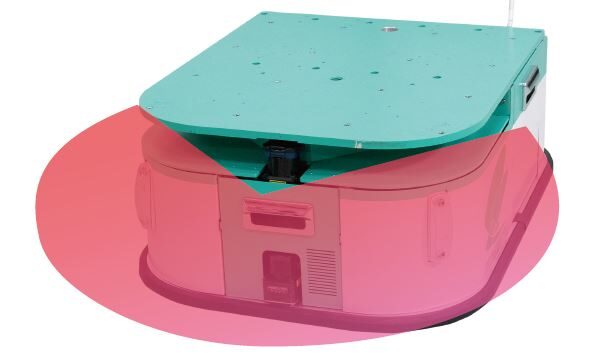

Self-Location Automatic Recognition Sensing Function

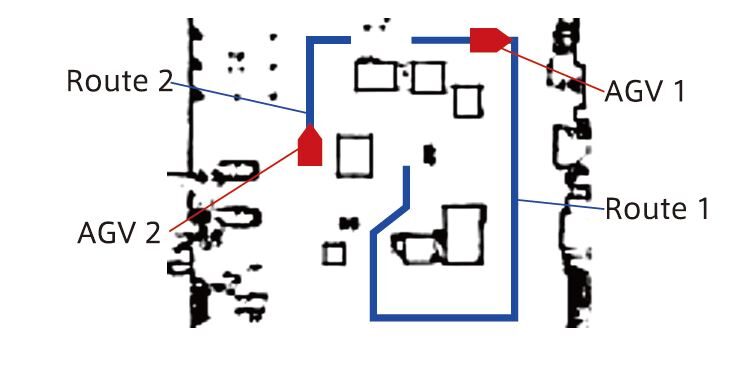

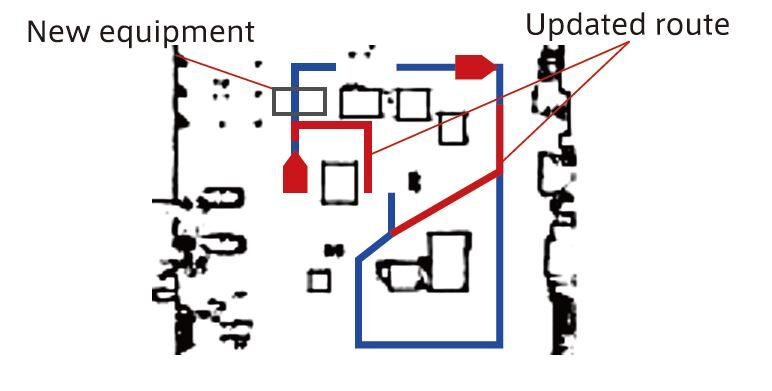

The existing AGV required a lot of expense and time for layout change because it utilized magnetic tape and guideline. The next-generation AGV of our company is installing [Self-Location Automatic Recognition Sensing Function] which does not need magnetic tape and free-carrying route setting is capable. Route change is capable instantly from computer and route transfer is capable in several ways by pattern registration.

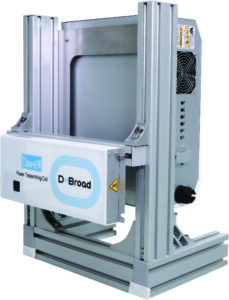

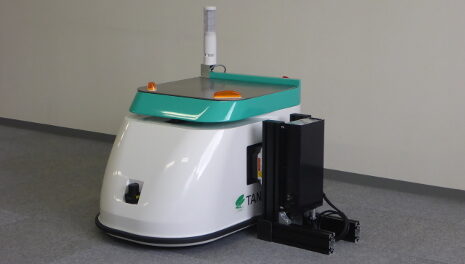

24 Hour Operable Wireless Power Feeding System (Optional)

24 hour operation of next-generation AGV is realized by applying Wireless Power Feeding System. The next-generation AGV is hassle-free because it drops by power feeding position automatically and returns automatically after power feeding.

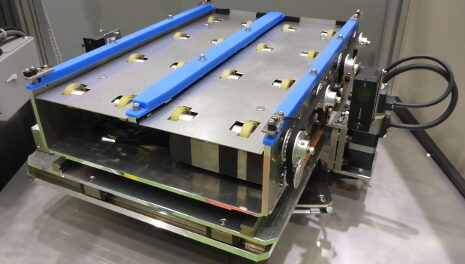

X-Y-θ Unit Permitting High Precision Work Delivery (Optional)

It is possible to install [X-Y-θ Unit] which is the high precision positioning unit for AGV Stop and Work Delivery. It realizes AGV Operation Positioning Error Correction and High Precision Work Delivery for each equipment.

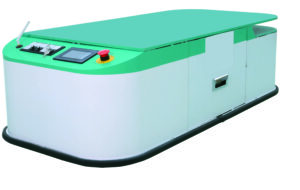

Product Lineup

Automated guided vehicles (AGVs) come in three basic types and are capable of carrying loads of up to 600kg.

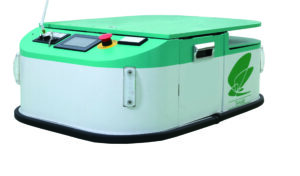

WYN-100A
Dimensions*1 : W520mm x L630mm x H 380mm
Weight : - kg
Max load Cap : load capacity : 20kg
Limit : 520mm x 475mm
Charging : 2 hr.
Climbing ability*2 : 2 degrees

WYN-200
Dimensions*1 : W600mm x L800mm x H 370mm
Weight : 160kg
Max load Cap : load capacity : 200kg
Limit : 600mm x 630mm
Charging : 2 hr.
Climbing ability*2 : 2 degrees

WYN-200 Plus
Dimensions*1 : W600mm x L800mm x H 370mm
Weight : 160kg
Max load Cap : load capacity : 200kg
Lifter unit : Up-Down
Limit : 600mm x 630mm
Charging : 2 hr.
Climbing ability*2 : 2 degrees

WYN-500
Dimensions*1 : W600mm x L1300 x H 430mm
Weight : 300kg
Max load Cap : 500kg
Limit : 600mm x 1100mm
Charging : 4 hr.
Climbing ability*2 : 2 degrees

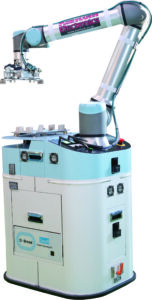

WYN-700
Dimensions*1 : W520mm x L620mm x H900mm
Weight : 140kg
Max load Cap : 100kg
Limit : 300mm x 450mm
Charging : 2 hr.
Climbing ability*2 : 0 degrees

*1 Exterior dimensions do not include bumper sections. To calculate dimensions including bumpers, add 38 mm to dimensions shown.
*2 Maximum climbing ability is rated at 4, but limits apply due to load capacities.
